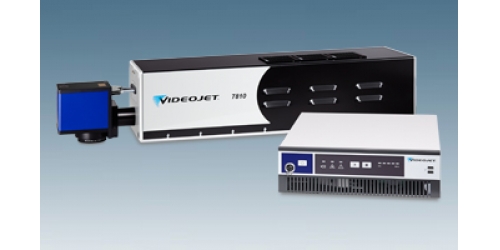

ﷺ2-watt ultraviolet light wavelength High-contrast identification marks with HDPE/LDPE and DuPontTM Tyvek® packaging properties The marking speed can reach 250 products per minute, and there is no distortion of the code on the rotating equipment.
| Value | |
| Laser Source | Pulsed Nd:YVO4 (Vanadate) Diode Pumped Laser |
| Maximum Power | 2 Watts |
| Laser Cooling | Air Cooling |
| Maximum Marking Speed | 500 Characters Per Second |
| Maximum Line Speed | 300 m/min (984 ft/min) |
| Environmental Rating | Marking Unit: IP20 / Power Unit: IP21 |
| Beam Output | Controllable Beam |
| Expected Laser Service Life | 14,000 – 20,000 Hours |
| Laser Wavelength | 355 nm |
| Focal Length Options | SS10 and SS7 with Focus Optics (f = 103 mm / 160 mm / 214 mm / 511 mm) |
| Maximum Marking Field | From 64 x 76 mm2 (SS10, f = 103 mm) up to 375 x 375 mm2 (SS10/SS7, f = 511 mm) |
| Standard I/O Connection | Ethernet |
| Standard User Interface | Smart Graph (Installed on optional external Windows 7 PC) |
| Optional User Interface | |
| Factory Air Required | No |
| Certifications | CE, CB, TÜV/NRTL |
🐬It has the advantage of normal operating time, which can increase productivity and reduce costs:
💯During daily operations, no consumables need to be replaced, which can extend the running time of the production line.
ꦐThe highest coding machine with air-cooled laser source can fully eliminate unplanned downtime.
🧸No daily mechanical maintenance procedures are required, which helps to increase normal operating time.
⛎Designed specifically to provide high performance and high quality:
ꦏAchieve high output in both rotational and linear applications, with a speed of up to 250 products per minute.
🅘The ultraviolet wavelength laser beam can achieve high-speed mobile marking for HDPE/LDPE packaging to improve efficiency.
🃏Mark at a speed of up to 5.0 meters per second with high-quality visual readable two-dimensional codes.
🗹The 360° Arc compensation software function can achieve consistent high-quality marking on rotating equipment, completely eliminating deformation.
ꦡRealize top visual readability with repeatable high-contrast color changes on white HDPE/LDPE.
Based on flexibility and simple applicability:
ꦡThe SmartGraph software helps to simplify the setting of arc compensation parameters*.
♍Because any code can be marked in any direction, at any position, on any product, it simplifies the coding process.
⭕The ultraviolet wavelength laser beam can mark high-resolution, high-contrast codes on HDPE/LDPE without any additives or revalidation of packaging materials.
🐲This is a special application request option.
🦩Tyvek is a registered trademark of E.I. du Pont de Nemours and Company.
